01

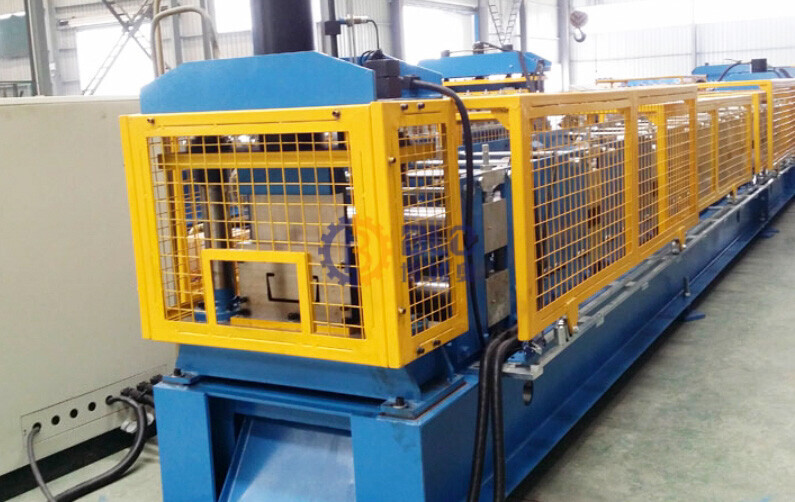

C U Z roll forming machine

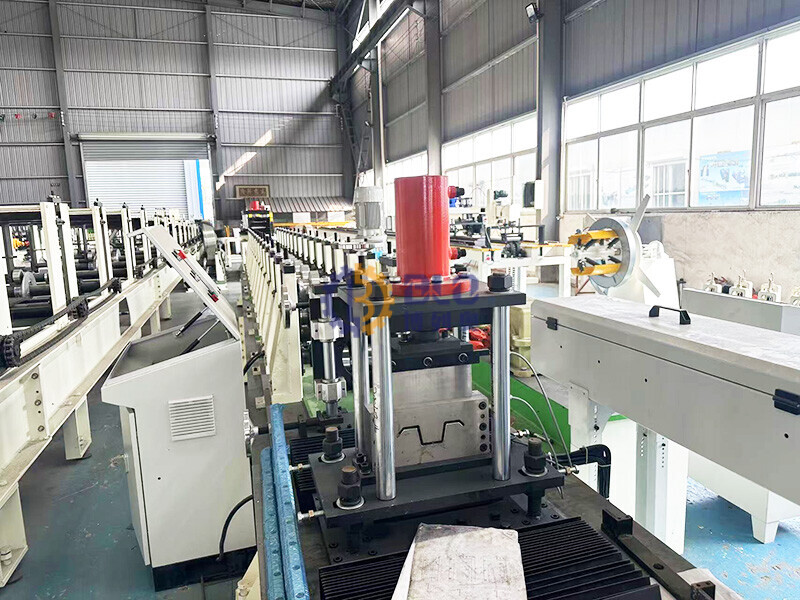

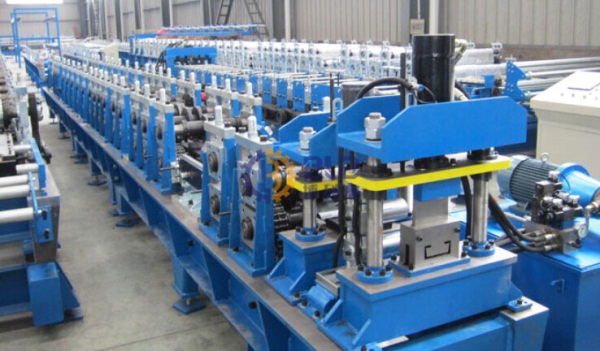

C U Z purlin roll forming machine
C/Z/U Purlin Forming Machine is a versatile piece of industrial machinery used for manufacturing purlins in different shapes—C, Z, and U profiles—commonly used in construction, steel framing, and roofing applications.

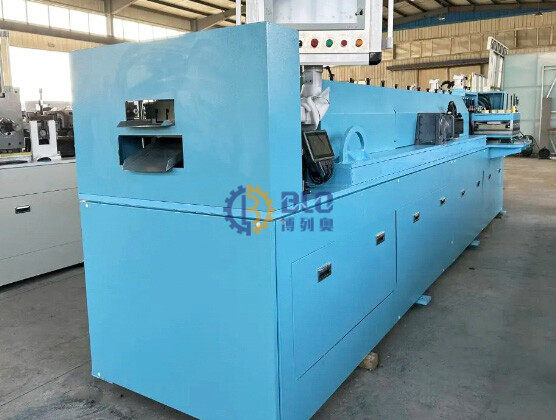

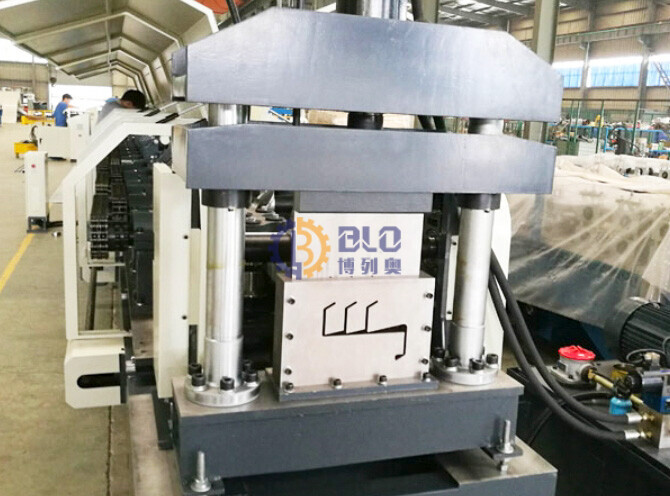

Adjustable profile size full automatic z c purlin roll forming machine

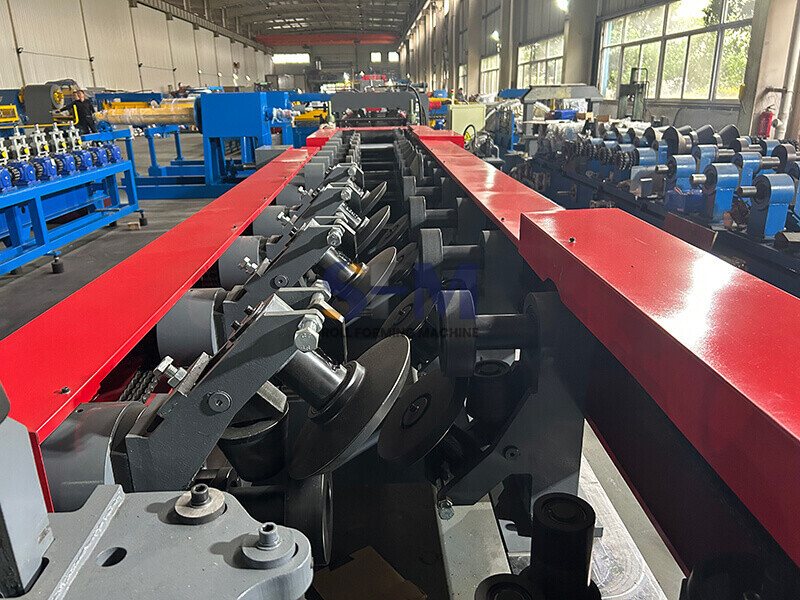

C/Z/U Purlin Forming Machine is an automated roll-forming machine designed to produce a range of purlin shapes, including C, Z, and U profiles. Purlins are horizontal supports used in the framing of buildings, particularly for roofing and cladding. These profiles are crucial for supporting loads from the roof and transferring them to vertical columns. The machine processes steel coils, typically made from Galvanized Steel (GI), Pre-painted Galvanized Steel (PPGI), or other types of metal sheets, to form the profiles.

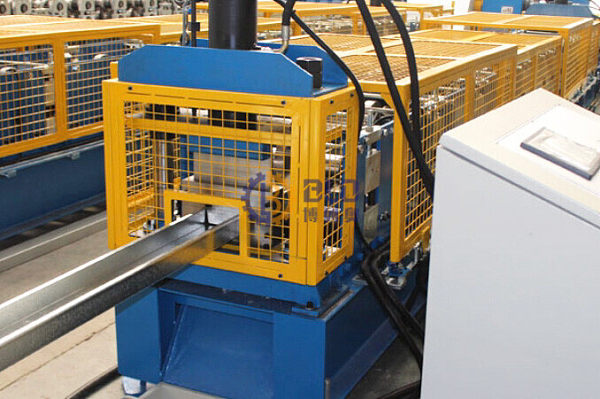

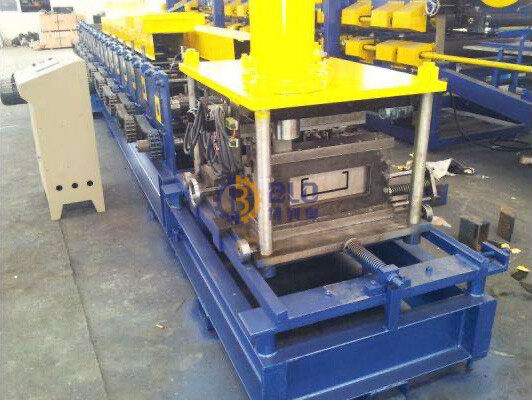

C U chanel roll forming machine

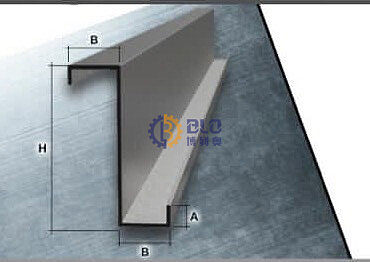

C-Purlins: These are the most common type, used for creating a strong and lightweight frame in buildings. They are often used in roof trusses.

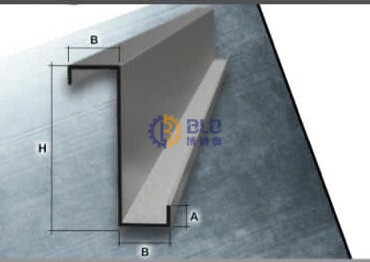

Z-Purlins: Similar to C-purlins, but the Z-shape allows for easy overlap, which increases the overall strength and efficiency when used in long spans.
U-Purlins: Typically used in construction and industrial applications, they can provide an increased load-bearing capacity due to their broader cross-section.

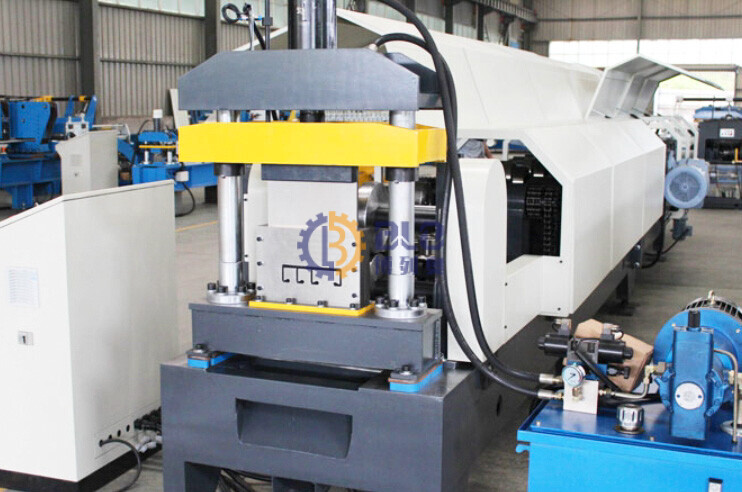

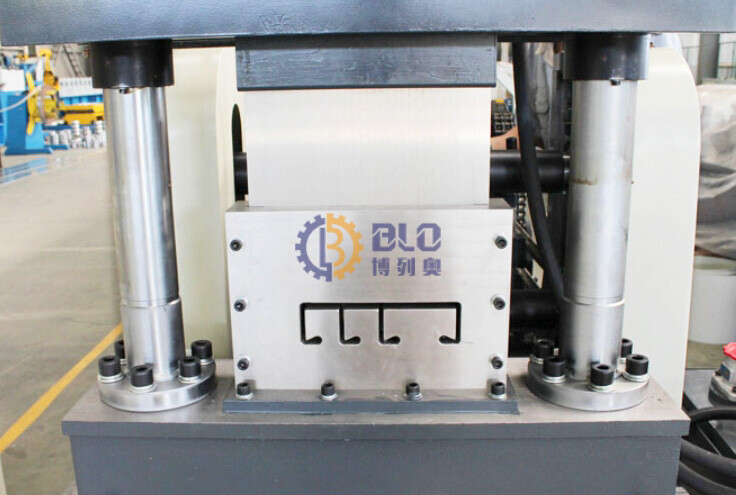

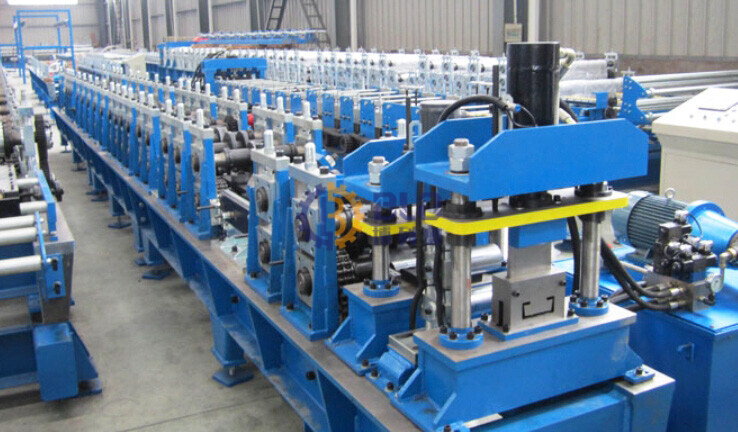

Full automatic adjustable CZ purlin type forming machine
Material: Typically uses steel, with thickness ranging from 1.5 mm to 3.5 mm.
Forming Speed: Modern machines can reach speeds of up to 12-15 meters per minute.
Customization: Machines can be designed to form different sizes of profiles, which can be adjusted depending on project requirements.
Automated Control: Many machines feature PLC (Programmable Logic Controller) control systems, ensuring precise control over the forming process.
Automatic Type Change: can automatically switch between C, Z, and U profiles without the need for manual adjustments.
02
Track Light Gauge Steel Frame Roll Forming Machine
Stud Track Light Gauge Steel Frame Roll Forming Machine
A Tile Roof Roll Forming Machine is designed to produce metal roofing tiles with a stepped or glazed design, commonly used in residential and commercial roofing applications. These machines are known for their precision, durability, and efficiency.
These machines ensure uniform quality, high production speed, and cost efficiency for roofing projects.

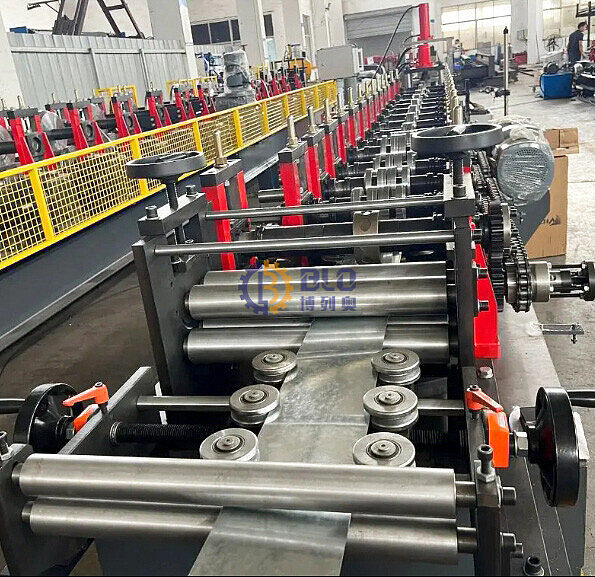

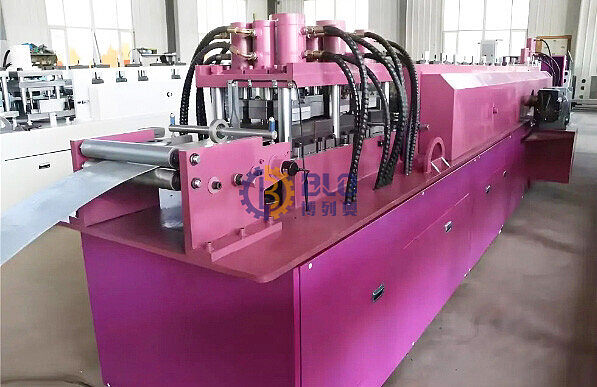

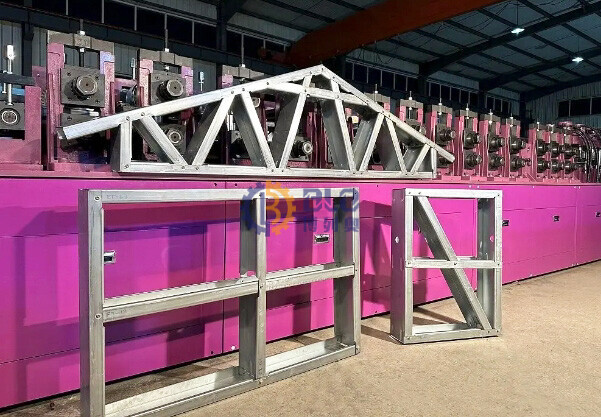

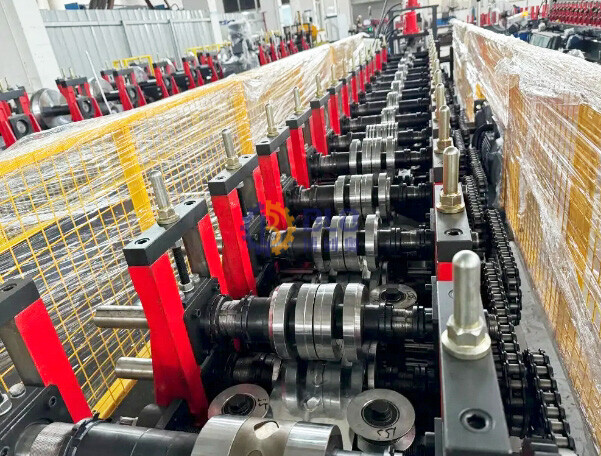

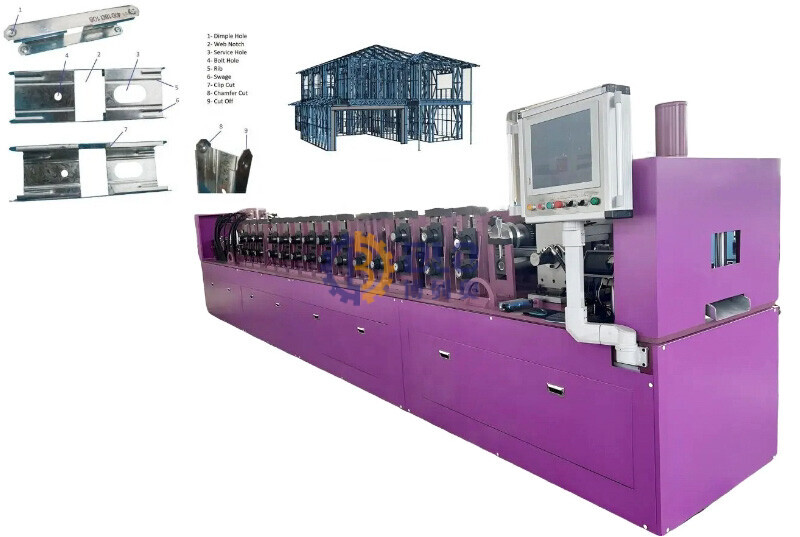

C75 C89 C140 Light Gauge Steel Framing Roll Forming Machine

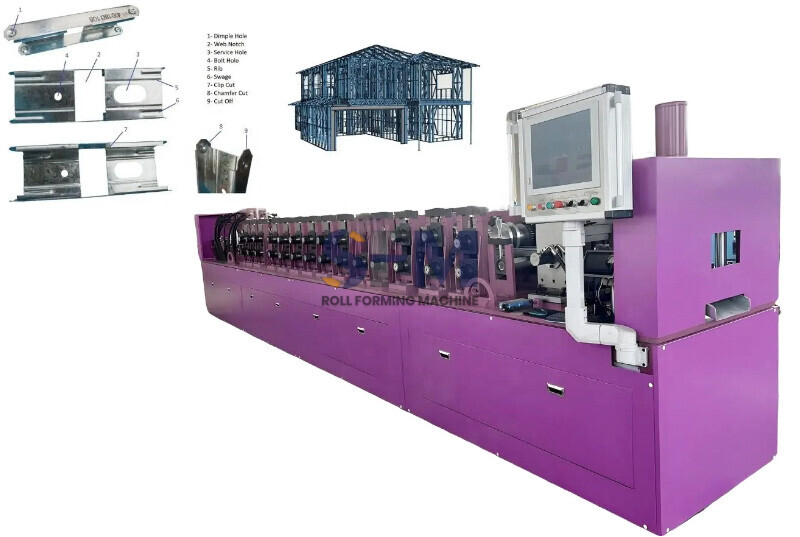

Light steel frame machines, also known as light gauge steel framing machines, are designed to manufacture steel components used in modern steel-frame construction. These machines roll-form cold-rolled steel into various profiles such as studs, tracks, beams, and columns. The resulting steel framing elements are primarily used in the construction of walls, roofs, and floors.
These machines are capable of producing components with precise dimensions and consistent quality, making them ideal for use in both small and large-scale projects. A typical light steel frame machine can produce a range of profiles to suit various building designs and structural requirements.

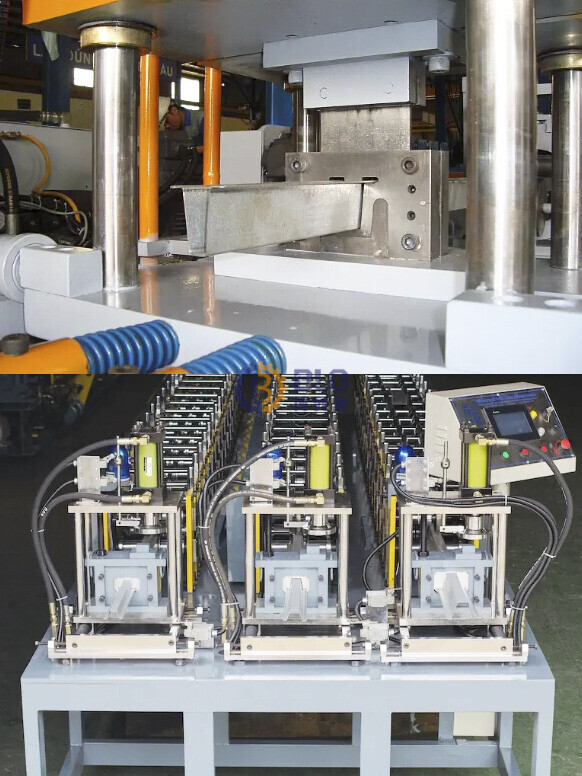

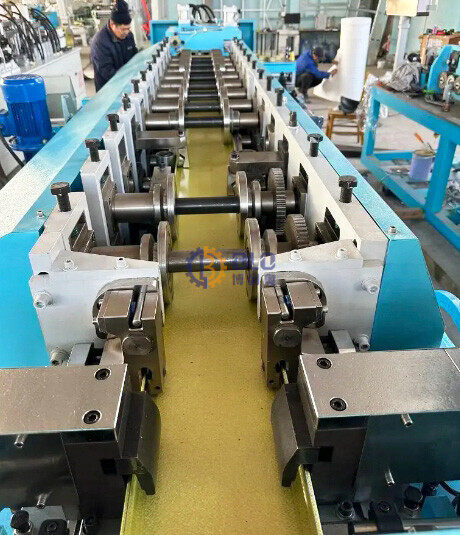

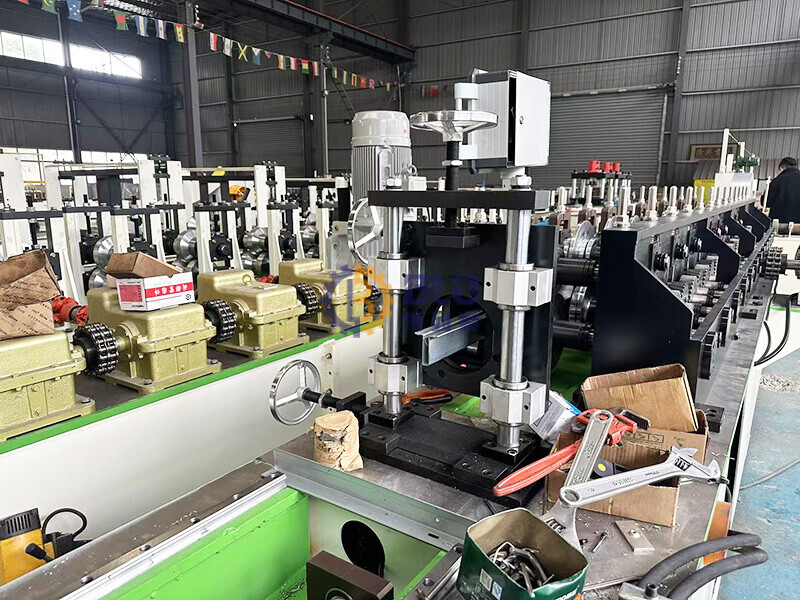

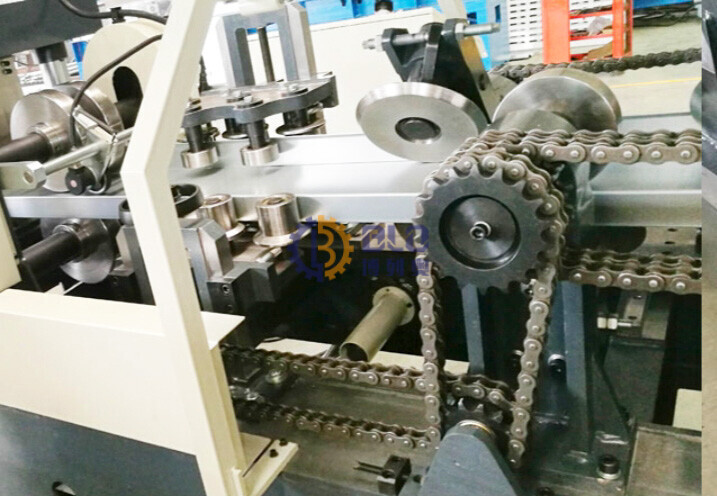

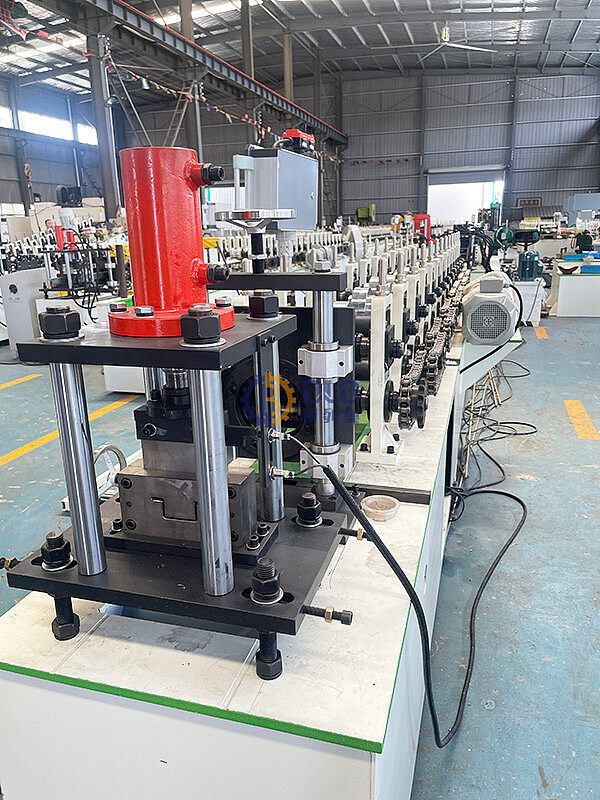

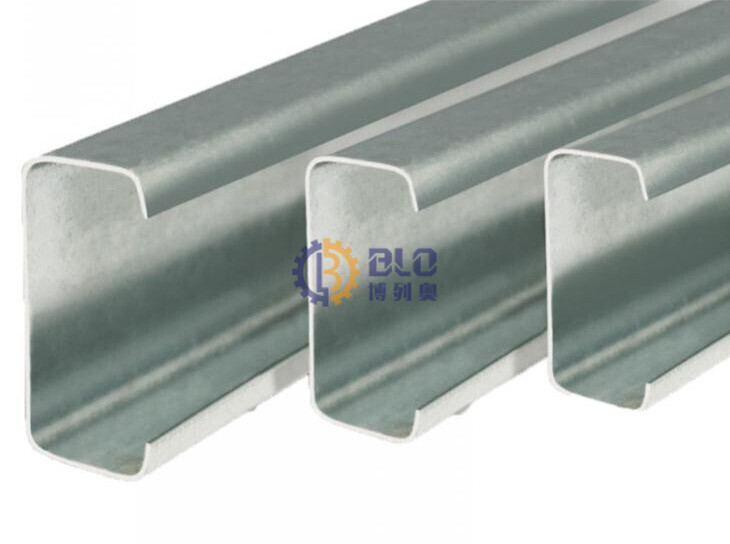

Auto Adjustable C U Channel Stud Track Gypsum Light Keel Drywall Roll Forming Machine
The Stud Track Gypsum Light Keel Roll Forming Machine operates through a series of steps that efficiently transform raw steel sheets into functional framing components:
Coil Loading: Steel coils, typically made from galvanized steel, are loaded into the machine.

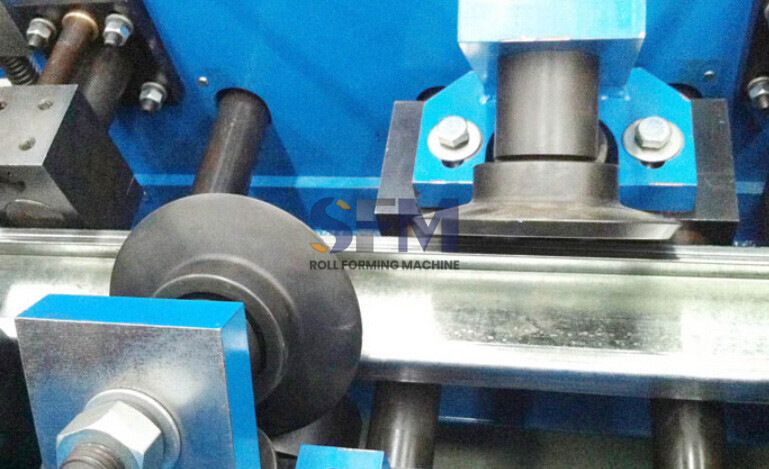

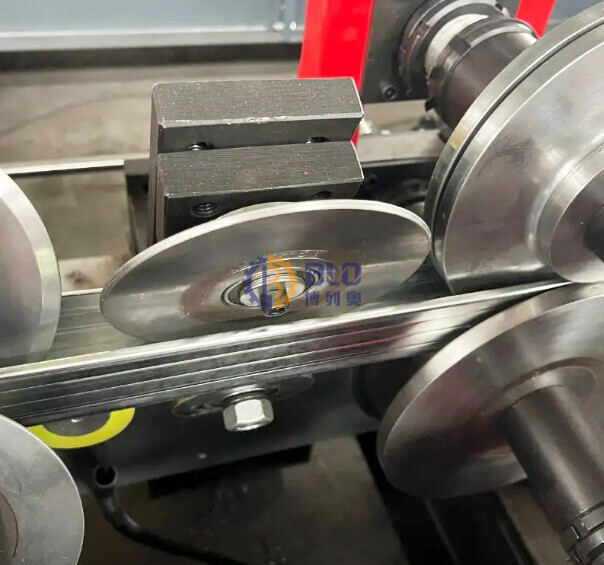

Roll Forming: The steel sheet passes through a series of rollers that gradually shape it into the desired stud or track profile. The rollers are designed to ensure that the metal is formed without excessive stretching or deforming.

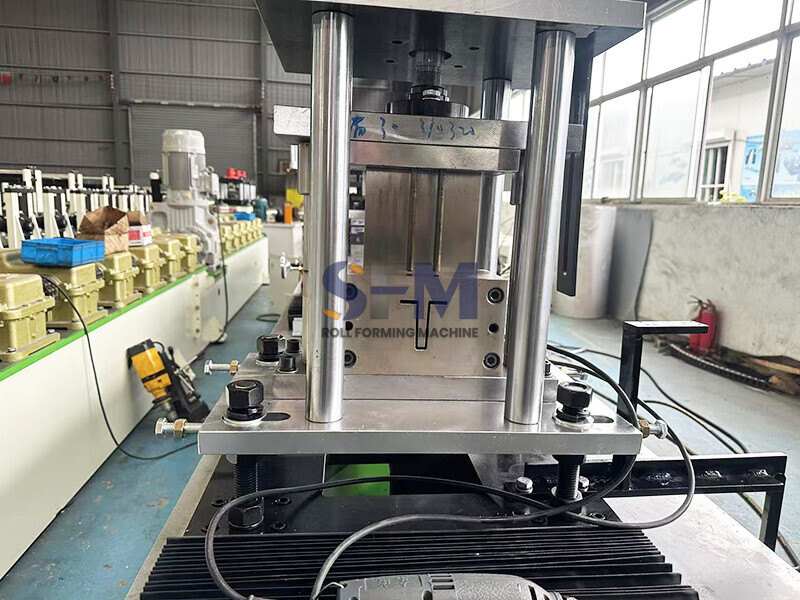

Cutting: Once the metal has been formed into the correct profile, the machine automatically cuts it to the desired length using a hydraulic cutting system. This is usually done at a high speed to ensure efficiency.
Stacking and Output: After the components are cut, they are stacked and made ready for transport to construction sites or further processing.
03

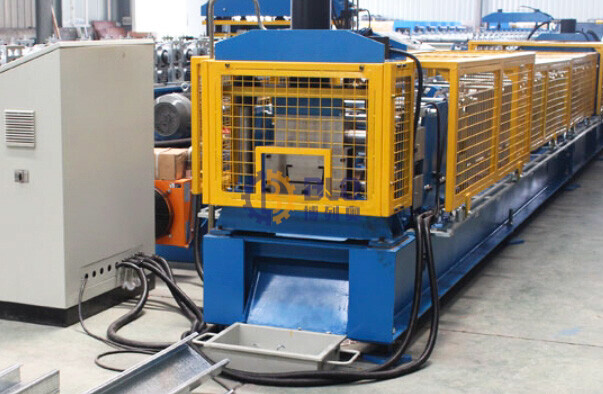

Wall Angle Roll Forming Machine

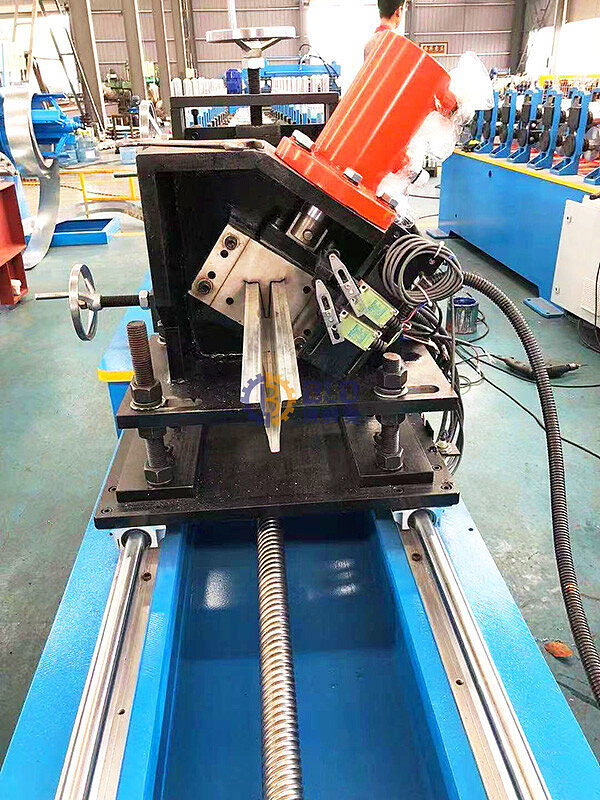

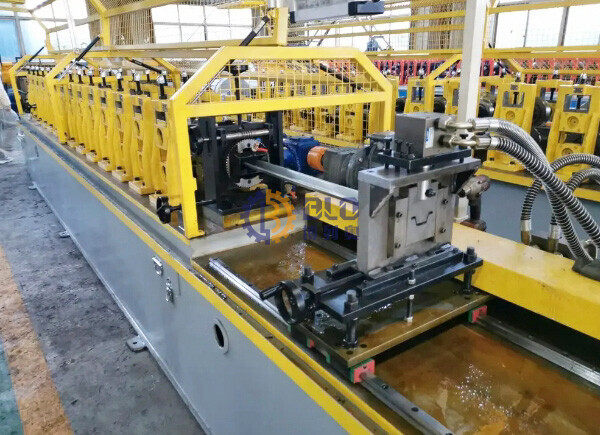

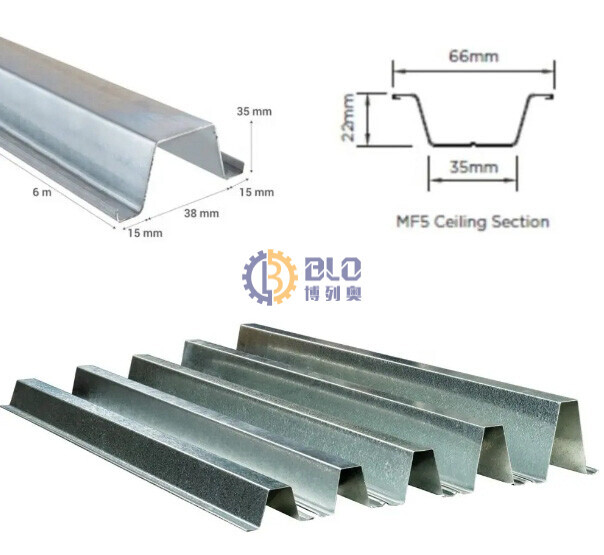

Ceiling Suspended Top Hat Shape Omega Profile Roll Forming Machine
Uncoiler: This is where the steel coils are placed. The uncoiler unwinds the coil to feed the material into the machine.
Feeding and Leveling Device: These mechanisms ensure the steel coil is fed evenly into the machine and that the material is levelled before it enters the forming rollers.

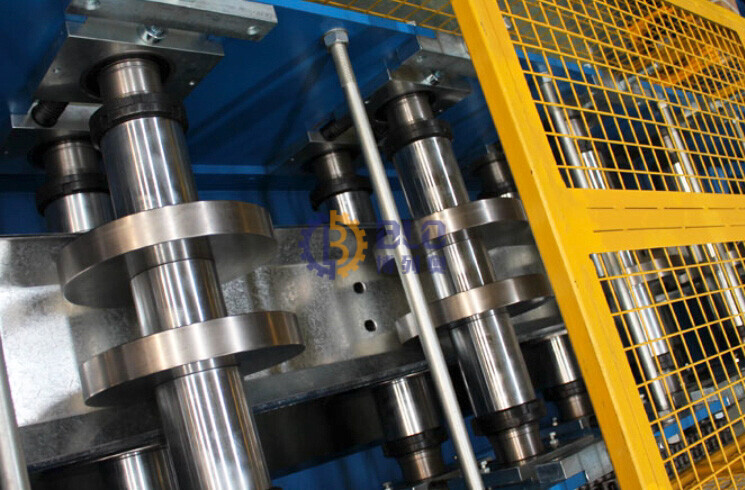

Roll Forming Section: This is the core part of the machine, where the coil passes through a series of rollers. These rollers gradually shape the steel into the desired omega channel profile. The top-hat shape is commonly used because of its effective weight distribution and ease of installation in ceiling systems.

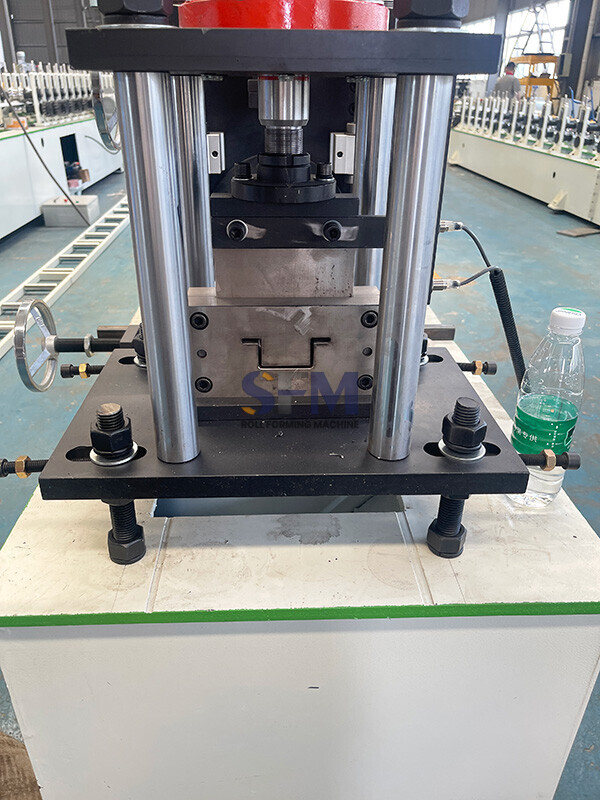

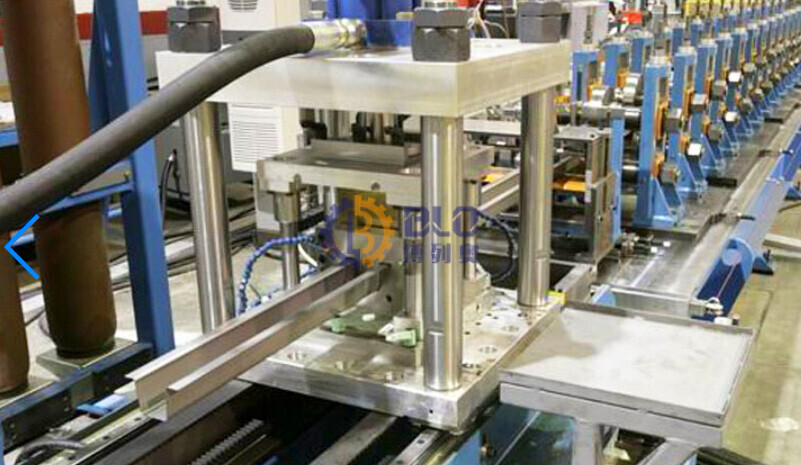

Hydraulic Cutting Device: After the metal has been formed into the desired shape, the material is cut to the required lengths using a hydraulic cutter. This ensures precision in the final product dimensions.
PLC Control Panel: Modern roll forming machines are equipped with a Programmable Logic Controller (PLC) to automate the process, ensuring consistency, quality, and reducing human error. The PLC allows easy customization for different sizes and profiles of the omega shape.

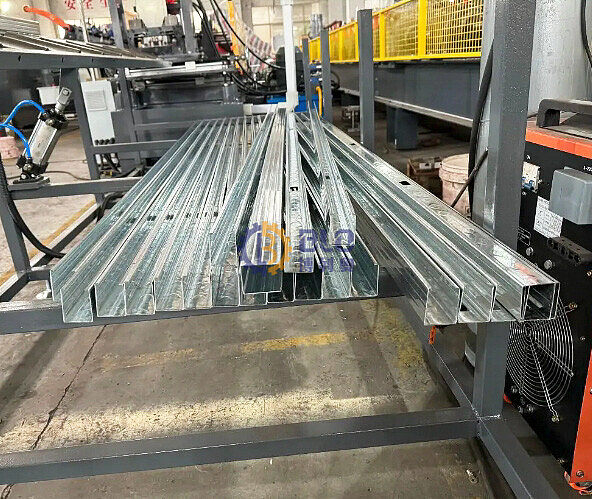

Run-Out Table: Once the material has been formed and cut, it is transferred to the run-out table where it is stacked for easy removal and packaging.

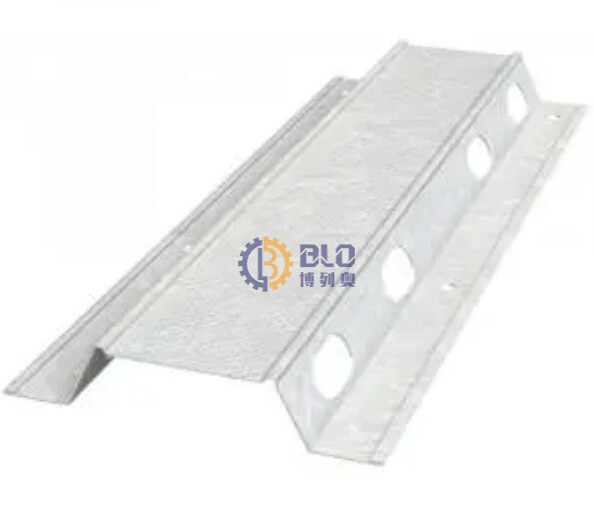

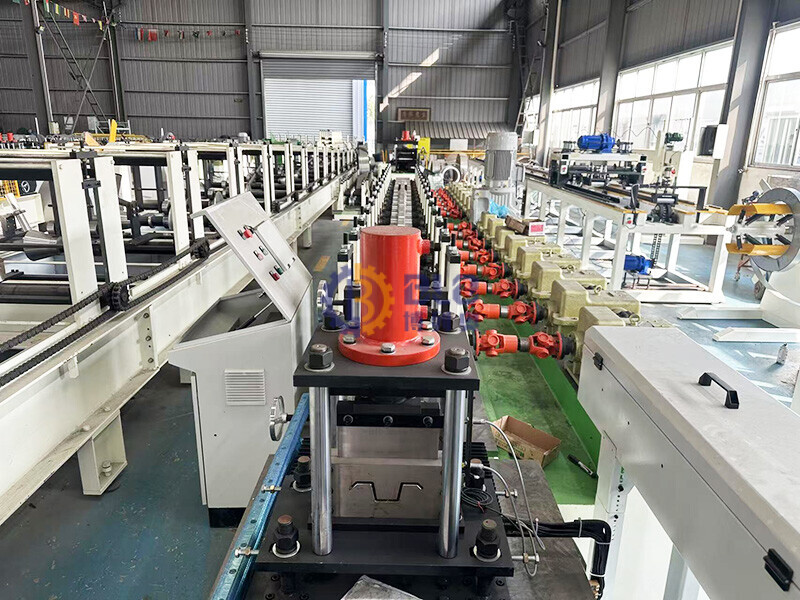

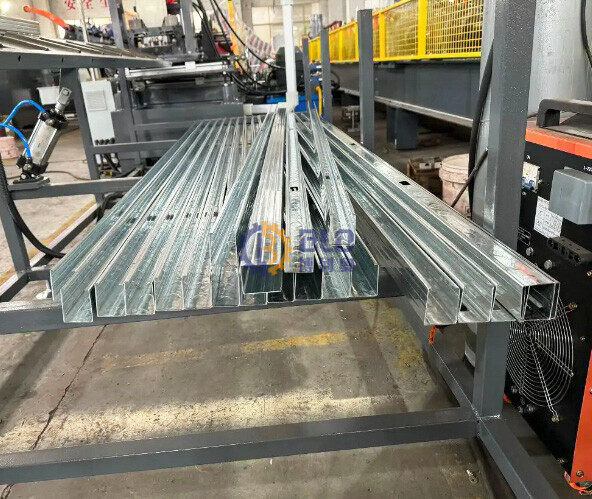

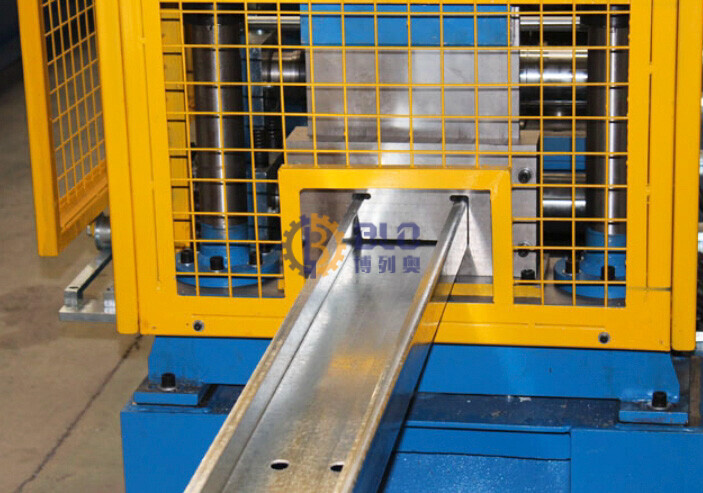

Ceiling Top Hat Furring Roof Truss Omega Channel Keel Roll Forming Machine
The Ceiling Suspended Top Hat Shape Omega Profile Roll Forming Machine is an indispensable tool for the production of ceiling suspension profiles used in both residential and commercial construction. With its high precision, speed, and versatility, this machinery streamlines the production of lightweight, durable profiles for suspended ceilings, drywall systems, and acoustic panels. Whether you're working on a small-scale project or a large commercial development, investing in an omega profile roll forming machine can improve efficiency, reduce costs, and enhance the quality of the final product.

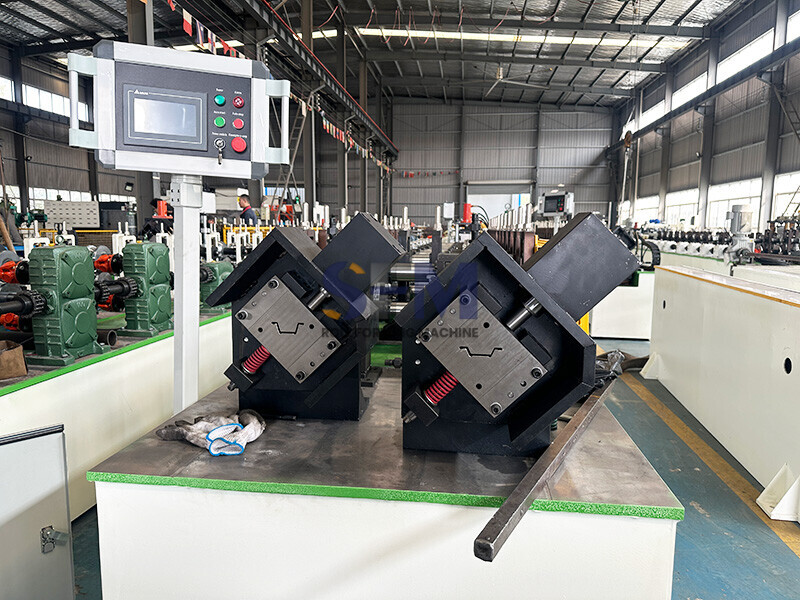

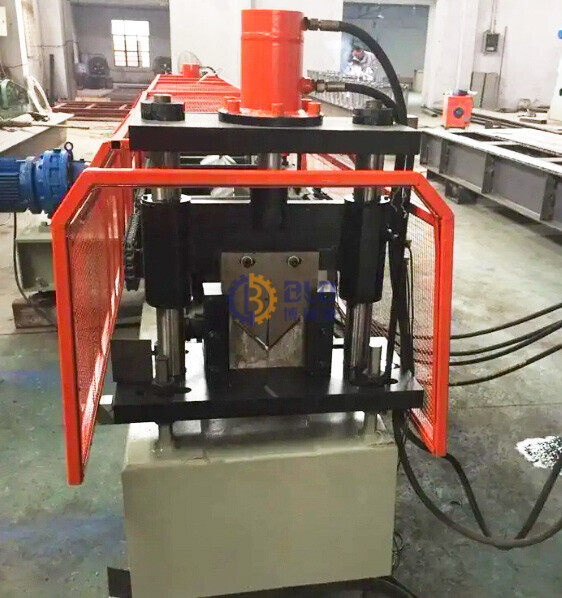

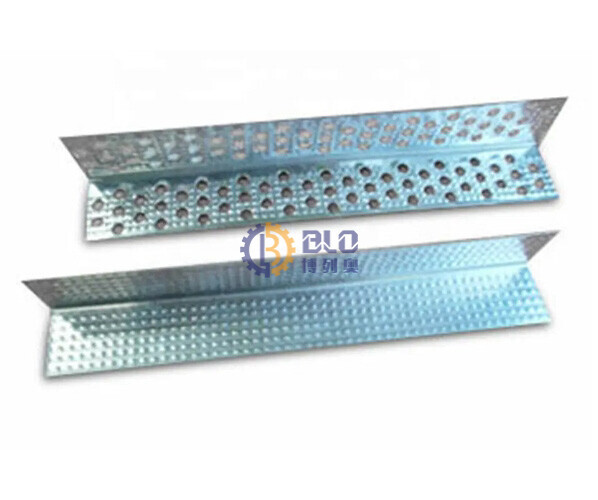

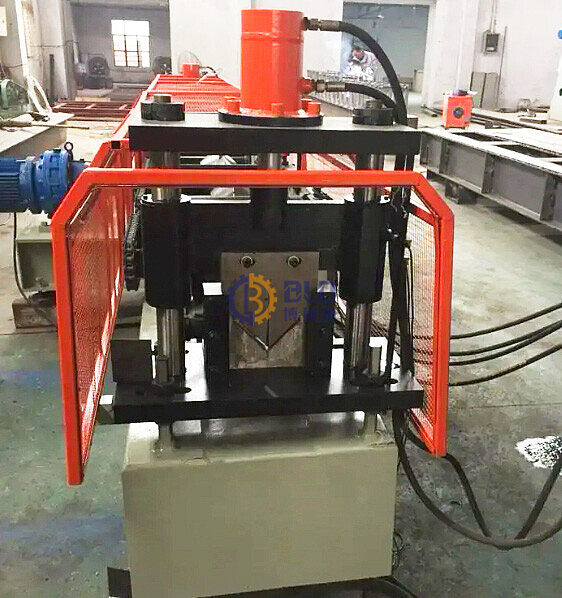

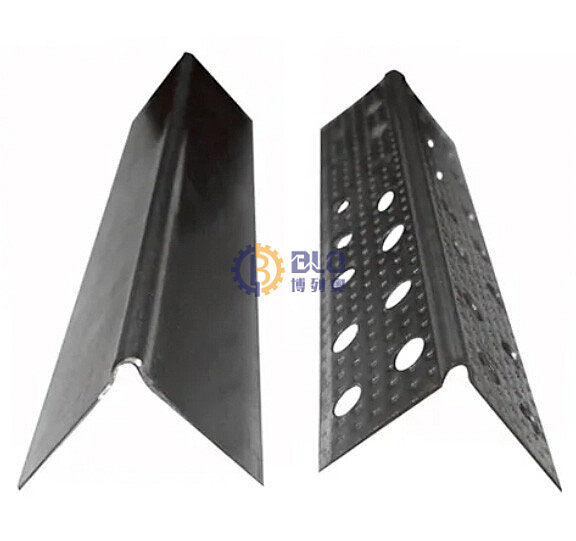

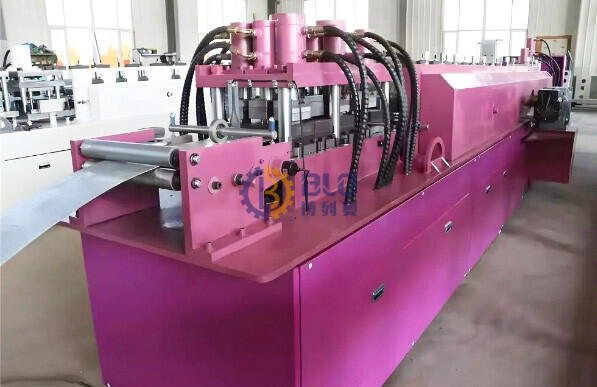

L V Profile Channel Corner Bead Wall Angle Roll Forming Machine
High Speed and Efficiency: Designed for fast production, they can process large quantities of material in a short period. The use of high-speed motors and advanced control systems allows for efficient production.
Automatic Profile Change: Some machines allow for automatic adjustment of the profile, making it easy to switch between different shapes like corner beads and angles. This reduces downtime and enhances flexibility on the production floor.
Precision and Consistency: Roll forming machines offer high precision in terms of dimensional accuracy, which ensures uniformity in the final product. This consistency is crucial for applications like drywall corners, where strength and appearance are paramount.
Customization Options: Manufacturers can customize the machines to produce various profiles, depending on the requirements of the construction project. Some machines allow for additional features like punching holes, cutting to length, and even adding decorative patterns.
